Final Production and Presentation Prep

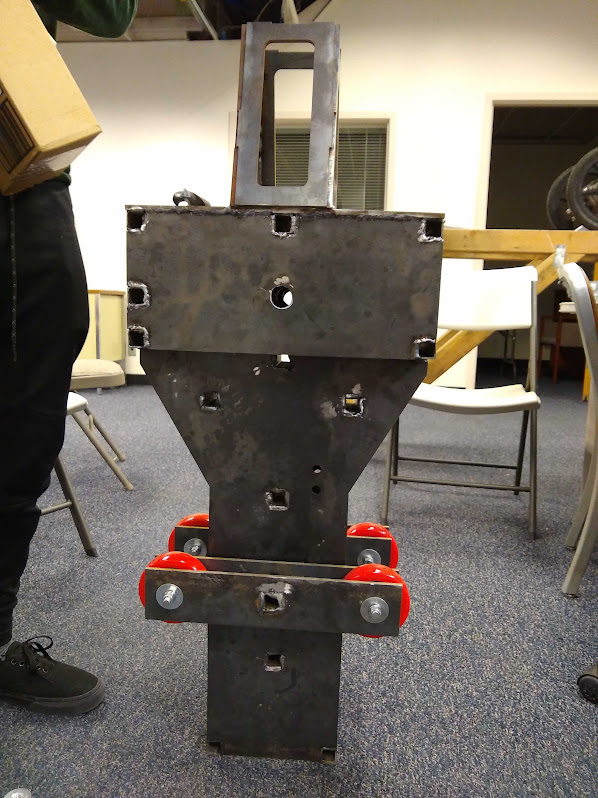

The last 2 weeks were spent assembling our drive bogie. Brandon and I spent a little over 40 hours between fitting, filing, boring, and welding the components through the weeks. Due to changing from metric to customary for assembly, there were some tolerance issues which required fixing with filing. The drive bogie turned out very well as shown below. The bogie is currently at Superway to have other teams integrate their systems. There was a slight issue with the alignment of the axle for the motor team. This was caused by shifting or warping of parts during welding and will be resolved by increasing the hole size by milling. Also, after speaking with guideway team, we have decided to shelve route selection for this year. Their third rail would not be ready in time and we would require having parts machined.

In addition to preparing for the Senior Project presentations on May 10th, Dr Furman requested that the Bogie Integration attend the SJSU Mechanical Engineering Alumni Event. We will serve as a showcase for Superway as a whole.
